The Sorama Portal enables you to fully analyze your product’s sound characteristics.
Easily share your measurements with your team all over the world. Combine Sorama’s unique Sound Imaging Technology with expertise connected in the cloud.
Start with a dB-meter and work your way up through Spectrum Analysis and Far Field Beamforming until you master the full potential of Acoustic Holography Near Field analysis.

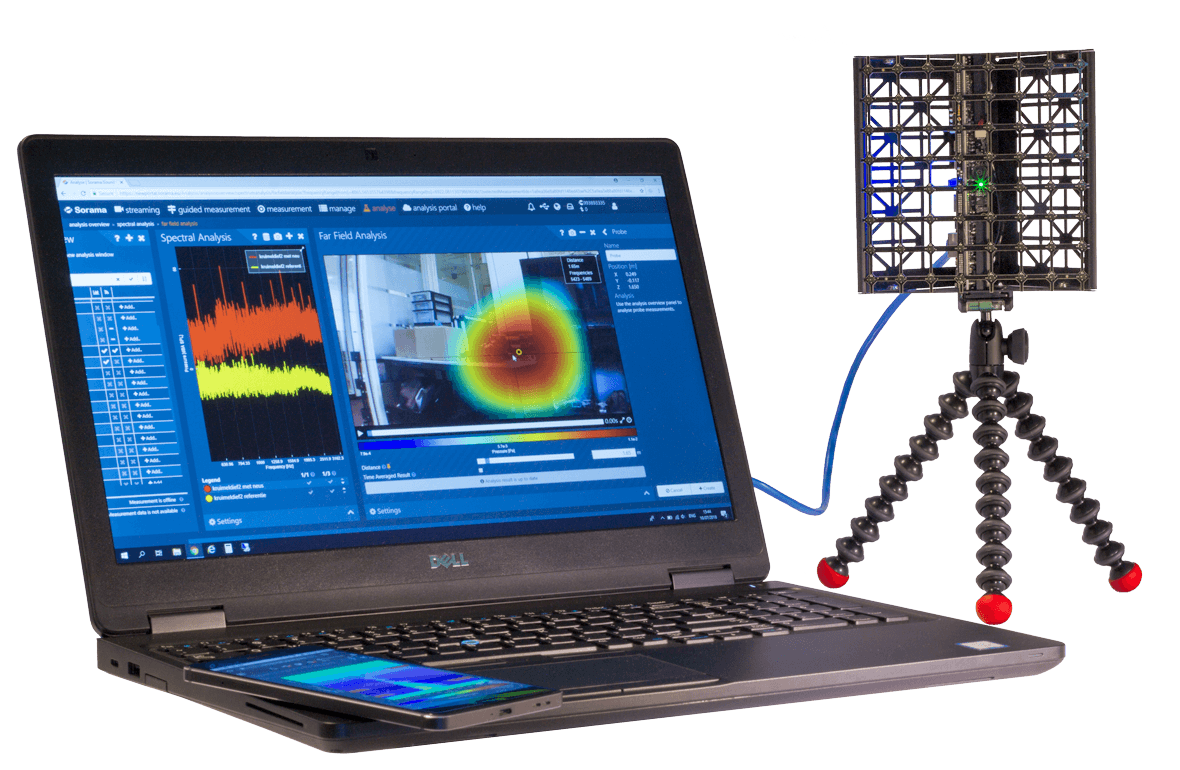

This HTML5 based platform can be accessed easily from your web browser and enables parallel live streaming, sound level meters, spectrum analyzers, waterfalls, far- and near-field sound imaging for all Sorama CAMs. It is also possible to do measurements while offline.
The Sorama Analysis Portal currently supports the following Analysis techniques:
Far Field Analysis
The Far Field / Beam forming Sound Image shows locations of sound sources using a colored image. This is comparable to a thermal camera, but instead of visualizing temperature the Far Field panel visualizes sound intensity. Locations where sound is coming from will have higher values. These locations don't necessarily have to be sound sources, but can also be, for example, reflections of sound against a reflective surface, such as a wall, window or table. The Sound Image will scale automatically based on the incoming sound. The color mapping depends on the selected Colormap. The color bar below the Sound Image shows the mapping of colors to values.
The sound images displayed in this module are obtained using a technique called beam forming. Using this technique it is possible to generate a 'filtered' audio signal for a specific position in space. This module allows you to select a position in the visible area of the webcam for which to generate such a 'filtered' audio signal. You can give this signal a name that reflects the position of the signal. The signal is then listed in the 'Analysis Overview' module allowing you to analyse this signal using a number of analysis modules such as 'Spectral Analysis', 'Time Analysis' and 'Spectrogram Analysis'. This feature is especially useful for comparing multiple acoustic sources in the sound image. Another use case for this feature is to find reflection paths by comparing delays per probe in the 'Time Analysis' module.
Near Field Analysis

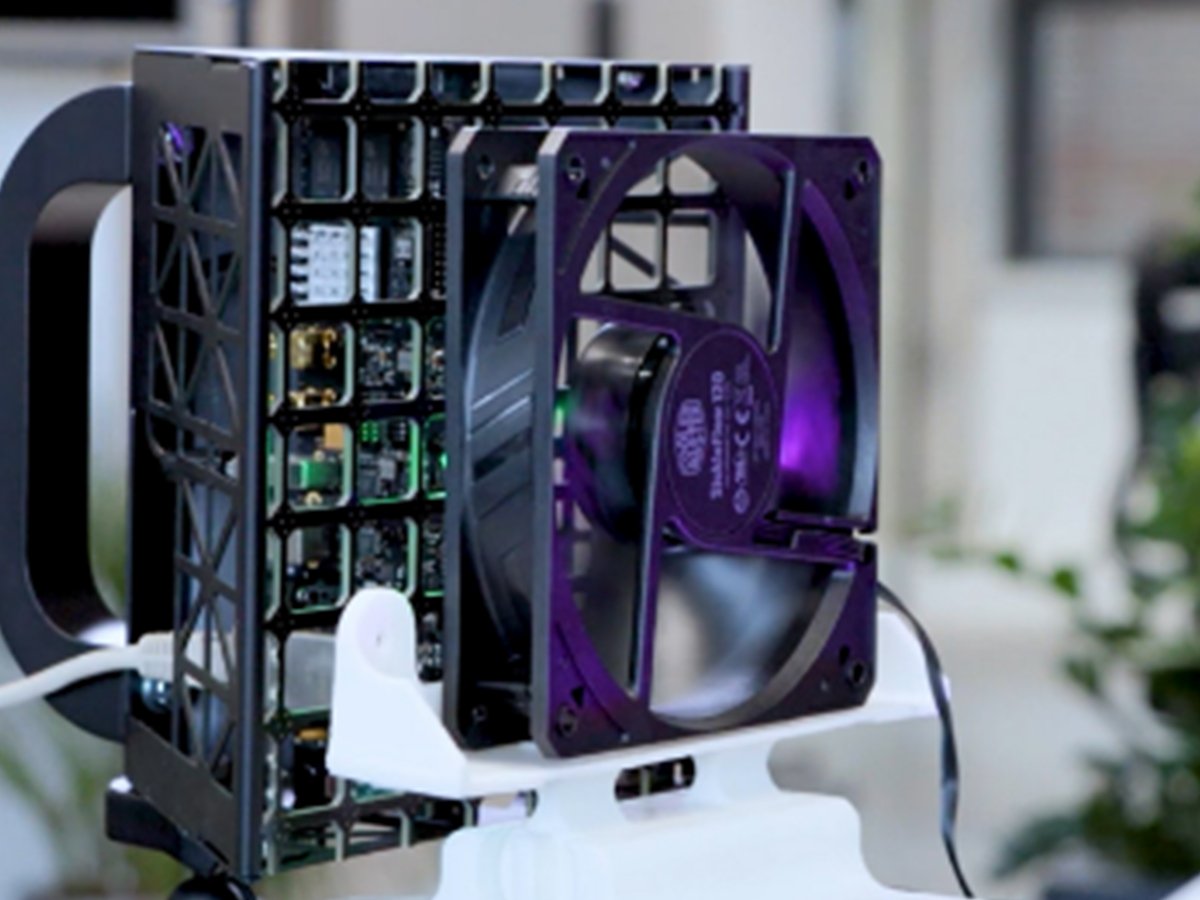

The Near Field / PNAH (Planar Near Field Acoustic Holography) Sound Image shows the dynamic behavior of the acoustic -pressure, -velocity or -intensity. Any projection plane between the measurement plane (distance = 0) and the source plane (distance = measurement distance) can be computed. The sound image (when using Pressure or Velocity projections) can be played as a video, the video represents a full period of the selected frequency. This means that when analysing a frequency of 1000Hz the video duration is 1/1000th of a second. Use this module to gain insight into the dynamic behavior of a sound source at close distance (typically closer than 10cm). Also keep in mind that different frequencies reveal different dynamic behavior. Using a properly matching sound image is highly recommended. The color bar below the Sound Image shows the mapping of colors to values.
Spectrogram Analysis (Waterfall Plot)
The Spectrogram is a time-frequency diagram. The X-Axis of the spectrogram displays the time from left to right. The Y-Axis of the spectrogram displays frequencies from top to bottom. The colors in the spectrogram represent the intensities of those frequencies at a certain time. The color mapping depends on the selected Colormap. The colorbar below the spectrogram shows the mapping of colors to values.
The Frequency Spectrum is the distribution of the amplitudes [dB] of each frequency component against frequency [Hz]. In other words: Your recording consists of a lot of frequencies which all contribute to the sound in another way. High dB values represent a large share in the sound and low dB values represent a small share. For instance: If there appears to be a peak (high dB value) at a certain frequency, this means that this frequency is particularly present in your sound recording.
The Time Analysis graph shows the pressure of the audio signal measured by the selected microphone(s) of an Acoustic Camera or of a (Far-Field) probe.
A probe is an audio signal based on a specific position. This audio signal can be analysed as a normal measurement using analysis modules such as 'Spectral Analysis' and 'Time Analysis'.
Want to know more?
Fill in the contact form to submit your question.
Some features of the Sorama Portal
Easily export results in file formats supported by Powerpoint (PNG, JPEG, MP4 & WEBM).
Parallel live streaming with sound level meters, spectrum analyzer, waterfall, Far Field imaging and Near Field Sound Pressure imaging.
Listen to specific positions in Far Field Analysis.
Quickly see the SPL of selected frequency ranges.
Sorama Portal Membership
The Sorama product-line of Acoustic Cameras and Cloud Analysis Portal are available for you via a simple three step selection process:
Choose a Sorama Portal membership (fit for your needs and credit buffer).
Buy a Credit package (required for analyzing measurements).
This three-step-deal enables you to perform best-in-class Sound Imaging measurements (both far- and near-field in one), automatically process and export sound images/videos, store and manage projects online, measure in the field and easily analyse anywhere.
Credits are valid as long as you have a valid and continuous Portal Membership, while you have active credits you can operate the Sorama sound camera and Sorama Portal.
Contact us for more info on actual pricing, our package deals or custom set-ups. There is always a selection that fits your needs.
